Spray foam insulation provides an effective solution for controlling warehouse temperatures in Raleigh’s variable climate. With proper application to walls, ceilings, and roof decks, closed-cell spray foam creates an airtight thermal barrier that maintains consistent internal temperatures regardless of external conditions. This reduces HVAC load by up to 40% while preventing air leakage and moisture infiltration that commonly plague warehouse facilities.
Warehouse temperature control is particularly challenging in Raleigh climate, where summer temperatures frequently exceed 90°F and winter can bring freezing conditions. Spray foam’s superior R-value of 6.0-7.0 per inch compared to fiberglass (2.2-2.7) makes it particularly effective for large commercial spaces with significant temperature differential requirements.
How Spray Foam Controls Warehouse Temperatures
Spray foam insulation manages warehouse temperatures through three primary mechanisms:
- Thermal resistance: Creates a continuous barrier with high R-value per inch
- Air sealing: Expands to fill gaps and cracks, preventing air infiltration
- Moisture control: Closed-cell foam acts as a vapor barrier, preventing condensation issues
These mechanisms work together to create a stable thermal environment that protects inventory and reduces energy costs.
Types of Spray Foam for Warehouse Applications
| Type | R-Value | Density | Best For | Temperature Control Benefits |
| Open-Cell | 3.5-3.7 per inch | 0.5-0.7 lb/ft³ | Interior walls, Sound dampening | Good thermal barrier, Budget-friendly option |
| Closed-Cell | 6.0-7.0 per inch | 1.7-2.2 lb/ft³ | Exterior walls, Roofing, Structural support | Superior temperature regulation, Moisture barrier, Structural reinforcement |
| High-Density | 7.0+ per inch | 2.5-3.0 lb/ft³ | Roofing, Areas with extreme temperature fluctuations | Maximum temperature control, Enhanced durability |
For warehouses in Raleigh, closed-cell spray foam typically offers the best balance of performance and cost. The higher upfront investment compared to traditional insulation is offset by energy savings and improved inventory protection.
Climate Considerations for Raleigh Warehouses
Raleigh’s climate presents specific challenges for warehouse temperature control:
- Hot, humid summers with temperatures regularly above 90°F
- Moderate winters with occasional freezing temperatures
- Annual precipitation exceeding 46 inches
- High humidity levels throughout much of the year
These conditions make effective insulation crucial for maintaining stable interior temperatures and preventing moisture-related issues that can damage inventory.
Technical Performance Data for Warehouse Applications
| Performance Metric | Spray Foam Insulation | Traditional Fiberglass | Rigid Board |
| Air Leakage Reduction | 90-95% | 20-30% | 40-60% |
| Energy Cost Reduction | 30-50% | 10-20% | 15-30% |
| Moisture Resistance | Excellent (closed-cell) | Poor | Good |
| Typical Warehouse R-Value Achieved | R-25 to R-40 | R-13 to R-19 | R-15 to R-25 |
| Lifespan | 50+ years | 10-25 years | 20-30 years |
| Installation Time (10,000 sq ft) | 2-4 days | 4-7 days | 5-8 days |
Bonus Tip: For warehouses with refrigerated sections, the transition zones between temperature-controlled and ambient areas benefit significantly from spray foam’s air-sealing properties, preventing condensation that can lead to mold and structural damage.
Application Areas for Maximum Temperature Control
To optimize temperature control in Raleigh warehouses, focus spray foam application on these key areas:
Roof Deck and Ceiling
The roof represents the largest surface area exposed to solar heat gain. Applying 3-5 inches of closed-cell spray foam directly to the underside of the roof deck can:
- Reduce heat transfer from the sun by up to 97%
- Prevent heat loss during winter months
- Eliminate condensation issues common in metal roofing systems
Exterior Walls
Perimeter walls experience significant temperature differentials. A 2-3 inch application of closed-cell spray foam can:
- Maintain consistent interior temperatures regardless of outdoor conditions
- Prevent air infiltration through joints, seams, and penetrations
- Reduce the load on HVAC systems during extreme weather

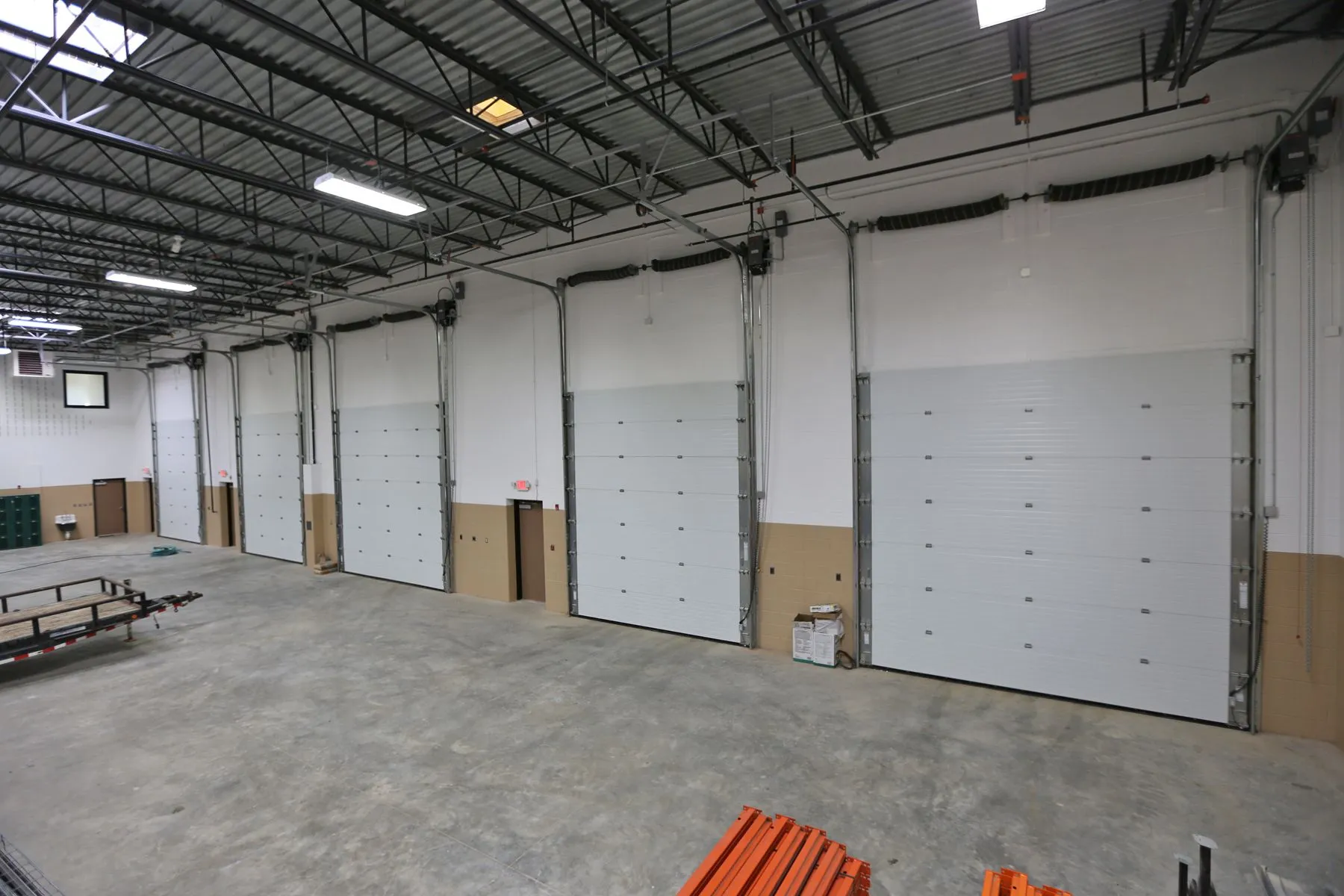

Loading Dock Areas
Loading docks represent significant thermal weak points. Targeted spray foam application around these areas can:
- Seal gaps between dock plates and building structure
- Insulate overhead doors and surrounding framing
- Reduce temperature fluctuations during loading/unloading operations
Cost Analysis and Return on Investment
| Factor | Spray Foam | Fiberglass | Rigid Board |
| Material Cost (per sq ft) | $1.50-$3.50 | $0.50-$1.00 | $0.70-$1.50 |
| Installation Cost (per sq ft) | $1.00-$2.00 | $0.50-$1.50 | $0.80-$1.80 |
| Annual Energy Savings (10,000 sq ft) | $3,000-$7,000 | $1,000-$2,500 | $1,500-$3,500 |
| Payback Period | 3-7 years | 5-10 years | 4-8 years |
| 20-Year ROI | 280-420% | 150-250% | 180-300% |
According to market data from the North Carolina Energy Office, warehouses utilizing spray foam insulation report average energy savings of 45% compared to similar buildings with traditional insulation systems.
Bonus Tip: When calculating ROI, factor in reduced maintenance costs and potential inventory protection benefits. Temperature-sensitive goods stored in spray foam insulated warehouses typically experience fewer quality control issues.
Things to Consider Before Making a Decision
Before investing in spray foam insulation for your Raleigh warehouse, consider these important factors:
- Building Usage: Determine temperature requirements based on inventory storage needs and occupancy patterns.
- Existing Conditions: Assess current insulation values, air leakage, and moisture issues that need addressing.
- Budget Constraints: While spray foam has higher upfront costs, long-term energy savings often justify the investment.
- Installation Timeline: Spray foam application requires complete evacuation of the application area for 24-48 hours during curing.
- Code Requirements: Ensure compliance with North Carolina building codes for commercial structures, including fire ratings.
- HVAC System Integration: Properly sized HVAC systems work more efficiently with spray foam’s air-sealing properties.
Common Questions About Warehouse Spray Foam
Is spray foam safe for warehouse environments?
Once cured (typically 24-48 hours after application), spray foam is inert and non-toxic. Proper ventilation during the curing process is essential. For warehouses storing food or sensitive medical supplies, ensure the insulation contractor provides documentation on off-gassing properties.
How disruptive is the installation process?
Installation requires temporary closure of the treatment area. Many warehouse operations schedule installation in phases or during planned downtime to minimize disruption. A typical 10,000 square foot application takes 2-4 days plus curing time.
How does spray foam perform in Raleigh’s climate?
Spray foam excels in Raleigh’s humid subtropical climate. Its air-sealing properties prevent humid summer air from entering the building, reducing condensation risk and helping HVAC systems maintain appropriate humidity levels for inventory protection.
Will spray foam provide additional benefits beyond temperature control?
Yes. Additional benefits include structural reinforcement (particularly for metal buildings), sound dampening, improved indoor air quality, and pest intrusion prevention.
FAQ
What thickness of spray foam is recommended for Raleigh warehouses?
For optimal temperature control in Raleigh’s climate, recommended thicknesses are:
- Roof deck: 3-5 inches of closed-cell foam (R-18 to R-35)
- Exterior walls: 2-3 inches of closed-cell foam (R-12 to R-21)
- Interior partition walls: 3-5.5 inches of open-cell foam (R-10 to R-20)
How long does spray foam insulation last in warehouse applications?
Quality spray foam installations typically last for the life of the building (50+ years) with no degradation in thermal performance, unlike traditional insulation materials that can settle or absorb moisture over time.
Can existing warehouses be retrofitted with spray foam?
Yes. Spray foam is ideal for retrofitting existing warehouses. It can be applied to current structures without major demolition, working around existing electrical, plumbing, and mechanical systems.
Is spray foam cost-effective for large warehouse spaces?
While the initial investment is higher than traditional insulation, spray foam typically delivers ROI within 3-7 years through energy savings. Larger warehouses often see faster payback periods due to the scale of energy consumption.
How does spray foam affect warehouse HVAC requirements?
Properly installed spray foam insulation can reduce HVAC requirements by 30-40%. This allows for smaller, more efficient HVAC systems or improved performance from existing systems, potentially extending equipment lifespan.
Maintaining Temperature Stability Year-Round
Achieving consistent temperature control in Raleigh warehouses requires a comprehensive approach. Spray foam insulation provides the foundation for temperature stability, but maximum benefits are realized when combined with:
- Properly sized HVAC systems that account for the reduced load created by superior insulation
- Strategic air movement within the warehouse to prevent temperature stratification
- Loading dock seals and shelters to minimize temperature fluctuations during operations
- Regular thermal imaging inspections to identify any insulation gaps or thermal bridges
By addressing these elements holistically, warehouse operators can maintain optimal temperatures throughout the year, regardless of external conditions.
Ready to Achieve Superior Warehouse Temperature Control?
Controlling warehouse temperatures in Raleigh’s variable climate requires effective insulation that addresses both thermal resistance and air sealing. Spray foam insulation provides a comprehensive solution that not only stabilizes interior temperatures but also reduces energy costs, prevents moisture issues, and can strengthen the building structure.
Apply these insights now: Schedule your warehouse insulation consultation with Raleigh Excel Spray Foam Insulation. Benefit from professional assessment of your specific warehouse needs and receive a customized temperature control solution.
