Crawlspaces in South Congress, TX face chronic moisture intrusion due to the region’s humid subtropical climate and clay-heavy soil composition. Reinforcing these spaces for long-term dryness requires a systems-based approach—combining vapor barrier encapsulation, drainage upgrades, dehumidification, and insulation. The most effective strategy uses closed-cell spray foam paired with a sealed vapor barrier and mechanical drying controls. This creates a dry, thermally stable environment that resists seasonal ground moisture and humid air intrusion.
This guide delivers comprehensive insights into materials, installation techniques, climate-specific variables, and long-term considerations based on extensive field experience with Austin-area foundations. It reflects expert insulation services in South Congress, TX system performance, moisture control engineering, and crawl space conditioning tailored to the South Congress microclimate.
Why Moisture Control in Crawlspaces Fails Without Full Reinforcement
Most crawlspace issues originate from incomplete solutions. Plastic sheeting alone doesn’t address air leaks. Venting fails in humid conditions. Fiberglass absorbs moisture and promotes microbial growth. For lasting dryness, an integrated system is essential.
Core Reinforcement Components:
- Sealed vapor barrier (reinforced polyethylene or liner)

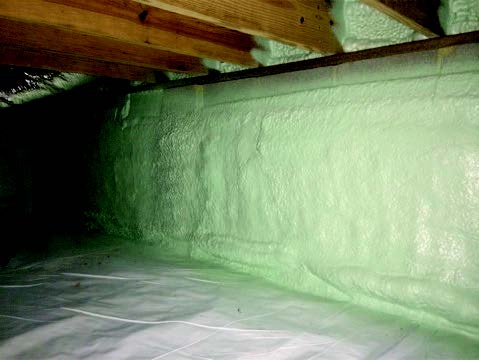

- Closed-cell spray foam insulation (for walls, band joists, and subfloor)
- Drainage improvements (French drain, sump system if needed)
- Dehumidifier with humidistat (maintains <60% relative humidity)
How South Congress Soil and Weather Impact Crawlspaces
South Congress rests on expansive clay that swells with rain and shrinks in heat. Combined with a hot-humid climate (average 72% annual humidity; NOAA), this results in seasonal dampness, condensation, and air infiltration through foundation gaps. Reinforcement must account for:
- Clay soil capillarity drawing moisture into spaces
- High dew point air infiltration through vents and unsealed edges
- Temperature-driven vapor drive from warm air into cooler crawlspaces
Bonus Tip: Install vapor barrier after drainage and foam to prevent trapping hidden moisture below the liner.
Comparison of Crawlspace Reinforcement Approaches
| Reinforcement Method | Moisture Resistance | Thermal Control | Durability | Maintenance Needs | Cost Range (per sq. ft) |
| Basic Plastic Sheeting Only | Low | None | Low | High | $0.50–$1.00 |
| Fiberglass with Vents | Poor | Poor | Poor | High | $1.00–$1.50 |
| Vapor Barrier + Drain Only | Medium | None | Moderate | Medium | $2.50–$4.00 |
| Full Encapsulation + Dehumidifier | High | Moderate | High | Low | $4.50–$6.00 |
| Encapsulation + Closed-Cell Foam | Very High | High | Very High | Very Low | $6.00–$9.00 |
Technical Specifications of Key Materials
| Material/Component | Specification | Benefit |
| Vapor Barrier | 12–20 mil reinforced polyethylene | Blocks ground vapor |
| Closed-Cell Spray Foam | R-6.5 per inch, <1 perm at 2” thick | Air + vapor barrier in one |
| Crawlspace Dehumidifier | 70–120 pints/day, auto-drain, Energy Star | Controls air moisture year-round |
| Perimeter Drainage | Perforated pipe in gravel trench, geotextile | Prevents groundwater intrusion |
Things to Consider Before Making a Decision
- Foundation Age & Access: Older homes in South Congress may have narrow or obstructed crawlspace access. Reinforcement may require structural work or partial excavation.
- Moisture Source Identification: A full evaluation is critical. Is moisture coming from soil, plumbing, or air leaks? Misdiagnosis leads to ineffective solutions.
- HVAC Duct Presence: If ducts run through the crawlspace, encapsulation boosts HVAC efficiency. If not, dehumidification may suffice.
- Resale Value Impact: Buyers often flag crawlspace issues. Reinforcement can increase home value and reduce inspection risk.
- Code Compliance: Ensure systems meet IRC Section R408 and Austin’s residential code on conditioned crawlspaces.
Bonus Tip: Avoid DIY solutions unless experienced. Improperly sealed barriers or mismatched materials can worsen moisture entrapment.
Regional Crawlspace Data and Trends
- Austin housing inspection reports (2023) noted 64% of homes with crawlspaces had moisture-related deficiencies (source: Texas Real Estate Inspector Association).
- ENERGY STAR recommends full encapsulation with mechanical drying as the gold standard for humid zone crawlspaces (source: energystar.gov).
- The EPA Home Moisture Guide states that crawlspace humidity exceeding 70% supports active mold growth (source: epa.gov/mold).
Services Focused on South Congress Crawlspace Needs
Choose the crawl space insulation solution for your home specific conditions. Available services include:
- Crawlspace Encapsulation
Installs a sealed, reinforced vapor barrier on the ground and foundation walls to block moisture and air movement. - Closed-Cell Spray Foam Installation
Applied to foundation walls, rim joists, and subfloors to prevent condensation, air leakage, and thermal loss. - Crawlspace Dehumidifier Setup
Energy-efficient systems maintain dry conditions, with integrated drain lines and smart humidistats. - Drainage System Installation
French drains, sump pumps, and soil regrading protect against water intrusion from surrounding soil. - Mold Remediation & Prevention
Professional mold removal and antimicrobial treatment following moisture intrusion events.
Limit system selection to those that integrate well with existing HVAC, foundation, and ground conditions. Don’t combine incompatible materials (e.g., fiberglass over vapor barriers).
Common Questions Before Reinforcement
What happens if the crawlspace is only partially sealed?
Partial systems trap humidity and often concentrate mold and rot in unsealed zones. Always complete the vapor barrier to the walls and piers.
Should vents be closed permanently?
Yes. Once encapsulated and mechanically dried, vents are no longer needed. Open vents only bring in humid air in South Congress’s climate.
Can closed-cell foam trap moisture in walls?
No. When applied to the interior, it blocks external moisture without allowing absorption. Always pair with drying systems.
Is dehumidification always needed?
Yes in humid climates like South Congress, especially during summer when dew points remain high and drive condensation risk.
FAQ
How long does a crawlspace encapsulation system last?
Properly installed, reinforced systems using quality vapor barriers and foam insulation last 20–25 years with minimal maintenance.
What’s the best way to monitor crawlspace conditions?
Install a wireless hygrometer or remote moisture sensor to track humidity levels year-round, especially during seasonal transitions.
How often should the dehumidifier be serviced?
Annually. Clean filters, check drain lines, and test the humidistat to ensure it maintains sub-60% RH reliably.
Can encapsulation help lower energy bills?
Yes. Insulated crawlspaces reduce HVAC loss through the floor and prevent ductwork from sweating or leaking efficiency.
What if the crawlspace already has mold?
Remediate fully before sealing. Encapsulation traps air; mold must be removed and the wood treated with antimicrobial solutions.
